CNC Side Drilling Machine for Woodworking

The CNC Side Drilling Machine is an advanced solution tailored for woodworking professionals involved in panel furniture production. This CNC wood machine excels at precisely and efficiently drilling horizontal side holes, a capability often lacking in traditional three-axis CNC routers. As an automated alternative to cumbersome multi-spindle drilling equipment, this side drilling machine offers a user-friendly, high-speed, and accurate method for modern furniture manufacturing.

Product Specifications

Detailed Description

The CNC Side Drilling Machine significantly boosts efficiency and precision in side hole drilling for the woodworking industry. Here’s what makes this horizontal drilling machine a standout choice:

Precision and Accuracy

• Equipped with a BANNER laser probe from the USA, this side drill ensures precise positioning within a 20-300mm (approx. 0.79 – 11.81 inches) range, accurately detecting various colors and materials. This feature is crucial for accurate dowel holes and other precise drilling tasks.
• The X-axis utilizes a servo motor with a gear and rack system, achieving a positioning accuracy of ±0.02mm (approx. ±0.0008 inches). The Y-axis combines a ball screw and linear guide for smooth and stable movement, essential for consistent woodworking results.
• A high-performance spindle guarantees perfectly round holes, eliminating the oval distortions often found in less advanced machines, ensuring quality in every drilled hole.

High Efficiency and Productivity

• Featuring dual drilling modes—barcode scanning and laser positioning—this machine enables rapid processing. Simply scan a G-code ID using the included barcode scanner for immediate setup, streamlining the workflow for panel furniture production.

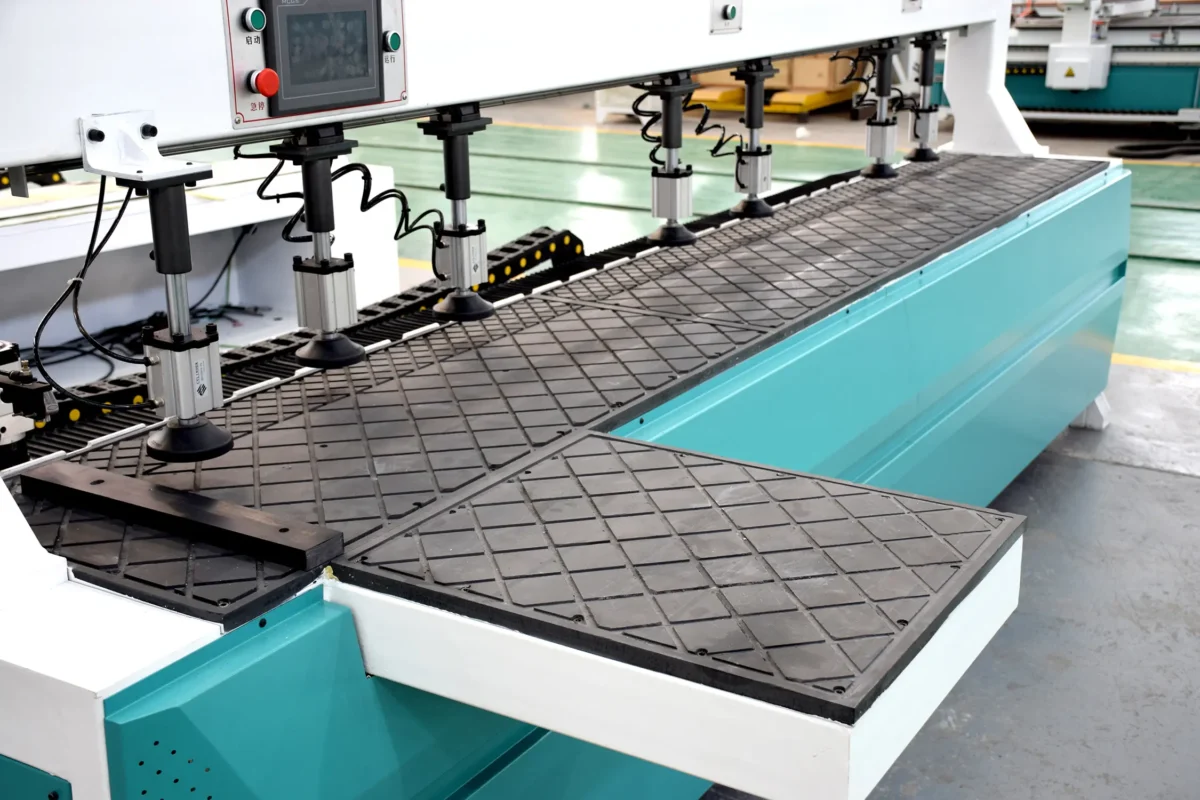

• The worktable is designed with three independently controlled zones, ideal for processing short panels or combining into a single large area for longer workpieces, maximizing operational flexibility for various woodworking projects.
• Automatic height adjustment via dual servo motors allows for quick switching between different board thicknesses in just about 1 second, significantly reducing downtime and increasing the efficiency of this automatic drilling machine.

User-Friendly Operation

• The intuitive touchscreen interface, featuring large icons and dual-mode operation (scanning or laser), minimizes the learning curve. Operators can typically begin production within hours, making this CNC wood machine accessible to a wider range of users.
• The machine’s design eliminates the need for highly skilled technicians, making it an excellent solution for small to medium-sized woodworking businesses looking to improve their panel furniture manufacturing.

Durability and Minimal Maintenance

• Constructed with a robust welded steel frame, precision-milled by a large CNC gantry mill, this machine provides exceptional stability during high-speed operation, ensuring long-term reliability for demanding woodworking environments.
• An automatic lubrication system extends the lifespan of critical moving components, while an independent oil-water separation air filter protects pneumatic elements, contributing to the low maintenance of this side drilling equipment.

Versatile Applications

• This CNC side drilling machine is capable of producing various hole types, including side holes, dowel holes, and stepped holes, as well as performing side grooving and creating recesses for partial concealed fittings. It efficiently processes solid wood, MDF, particleboard, and more, making it a versatile tool for diverse woodworking needs.
• For complete concealed fitting processing, consider upgrading to the dual-spindle model.

Applications

• Panel Furniture Manufacturing:

  Perfect for producing cabinets, wardrobes, shelves, and other panel-based furniture requiring precise side drilling.

• Woodworking Shops:

  Streamlines the production of custom furniture and components, offering efficient solutions for various woodworking tasks.

• Production Lines:

  Integrates seamlessly with CNC routers and edge banding machines to create an efficient and comprehensive production workflow for high-volume panel furniture manufacturing.

Why Choose This CNC Side Drill?

• Enhanced Productivity:

  Automates side hole drilling, significantly reducing labor time and increasing production output in your woodworking operations.

• Reduced Costs:

  Lowers the reliance on skilled labor and minimizes errors through precise servo-driven operation, leading to cost savings in your panel furniture production.

• Superior Quality:

  Achieves consistent, high-quality holes that enhance the overall finish and structural integrity of your furniture, ensuring customer satisfaction.

• Ease of Operation:

  Enables quick staff training and easy deployment of this side drill tool with minimal setup requirements, maximizing uptime in your woodworking shop.

• Increased Versatility:

  Handles a wide array of woodworking tasks with a single, dependable CNC wood machine, including dowel holes, stepped holes, and side grooving.

Choose efficiency today

Ready to transform your woodworking process? Contact us today for more information about the CNC Side Drilling Machine or to schedule a live demonstration. Elevate your production efficiency and quality – invest in the ultimate side drill solution now!If you are considering drilling six sides in one process, then the more advanced CNC Six Sided Drilling Machine is here.
