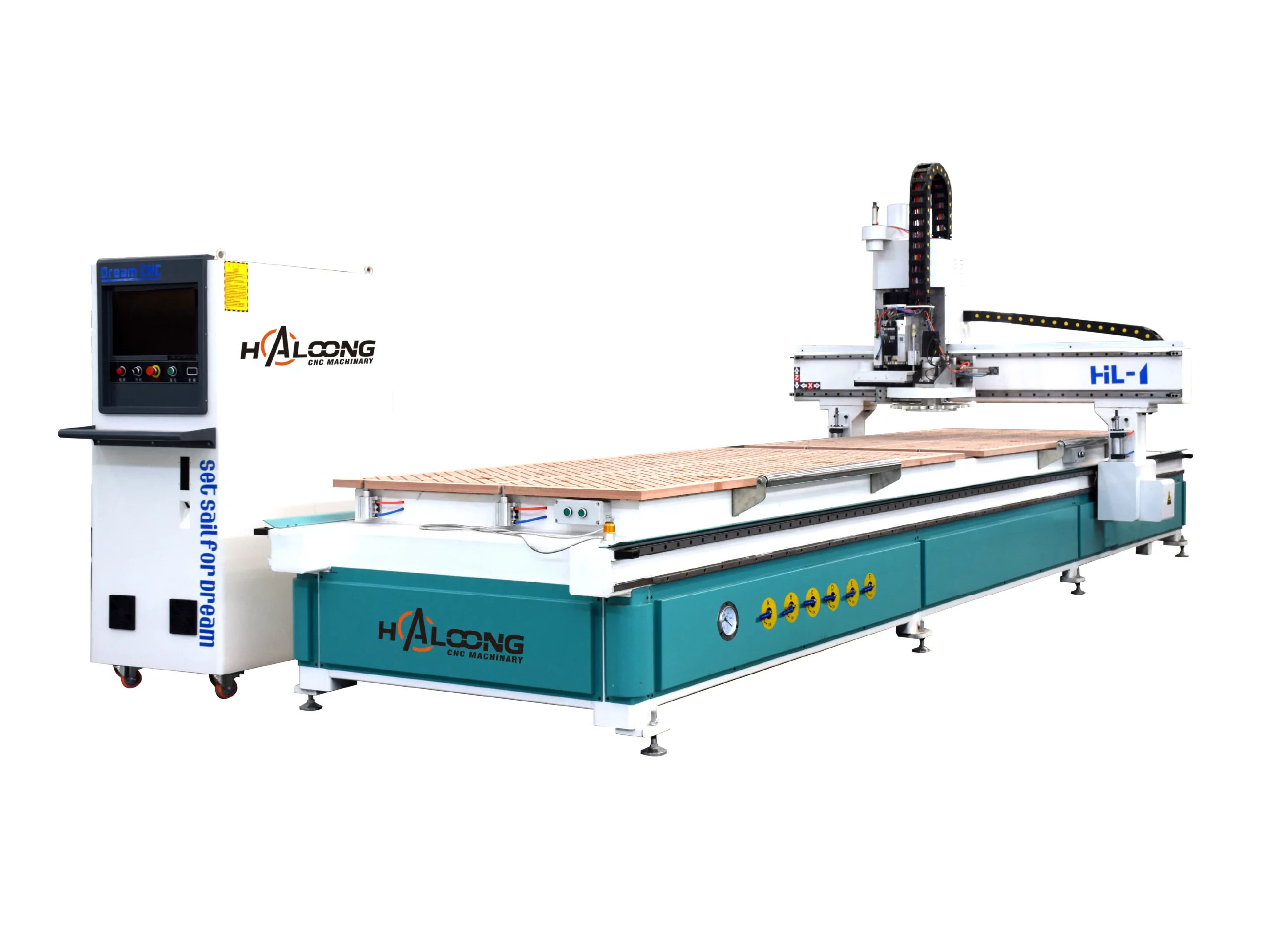

High-Speed Carousel Automatic Tool Changer CNC Wood Engraving Machine: Precision Woodworking for Furniture, Cabinetry, and Decorative Panels

Key Features and Benefits:

• Lightning-Fast Tool Changes for Unmatched Efficiency: Advanced Disc-Type Servo Tool Changer

  • Technical Description: Featuring a high-precision servo motor-driven disc-type (carousel) tool magazine, this machine minimizes tool-changing distances, ensuring seamless and on-demand tool swaps. With tool change times as rapid as 4-6 seconds, it significantly reduces non-processing time, maximizing your production output. The system automatically selects and changes tools based on G-code instructions, eliminating manual intervention and optimizing complex machining sequences.
  • User Benefits: For businesses requiring multiple tools for intricate operations like installing furniture connectors or executing advanced joinery, the rapid tool changer translates to dramatically reduced cycle times and increased throughput. This enables you to handle larger production runs and meet tight deadlines, boosting your profitability.

• Unleash Your Creativity with a Versatile Tool Magazine: Accommodates 12-20 Tools

  • Technical Description: The expansive tool magazine supports between 12 and 20 tools, providing the flexibility to tackle a wide array of engraving and cutting tasks. It effortlessly handles traditional furniture hardware like three-in-one connectors and is perfectly suited for advanced invisible joinery techniques such as Lamello, Festool Domino, peanut, and Lockdowel systems. Customize your tool library configuration to optimize for specific projects, empowering your workshop to cater to a broader spectrum of customer demands with ease.
  • User Benefits: A larger tool capacity means fewer interruptions for manual tool changes, allowing for more complex and sophisticated designs to be completed in a single setup. This versatility opens up new possibilities for product innovation and allows you to take on diverse projects, expanding your market reach.

• Simplified Operation for Maximum Productivity: Intuitive Controls and Easy Data Transfer

  • Technical Description: We’ve streamlined the operational process to minimize complexity, allowing operators with varying levels of technical expertise to quickly become proficient. Intuitive controls include user-friendly knobs, a dedicated reset button, and an easily accessible emergency stop button for enhanced safety. Data transfer is seamless via network and USB interfaces, providing flexibility in managing your design files.
  • User Benefits: The ease of operation reduces training time and costs, allowing your team to become productive quickly. The simplified workflow minimizes the potential for operator error, leading to more consistent and high-quality results.

• Enhanced Material Hold-Down for Superior Precision: Redesigned Phenolic Vacuum Table

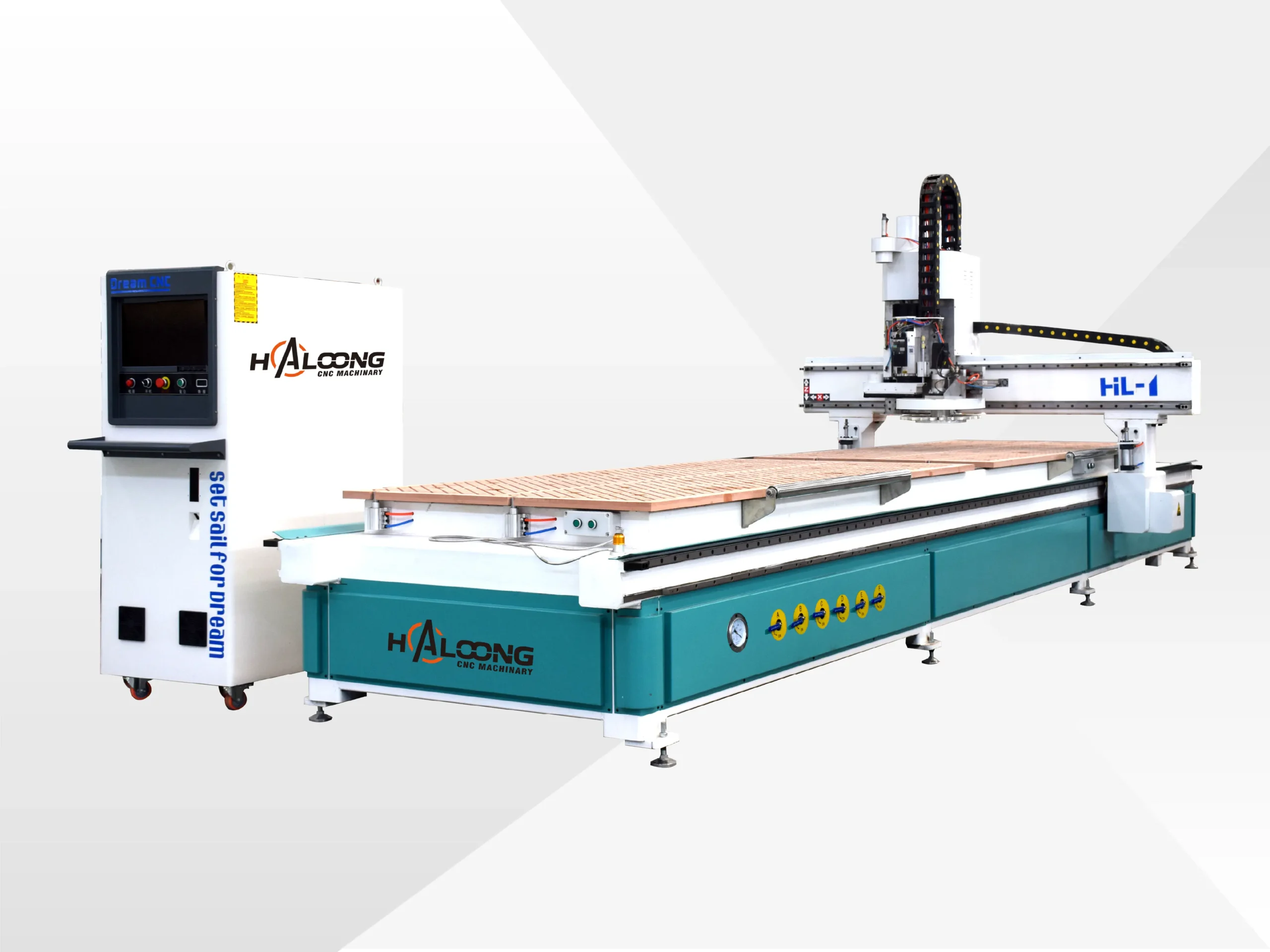

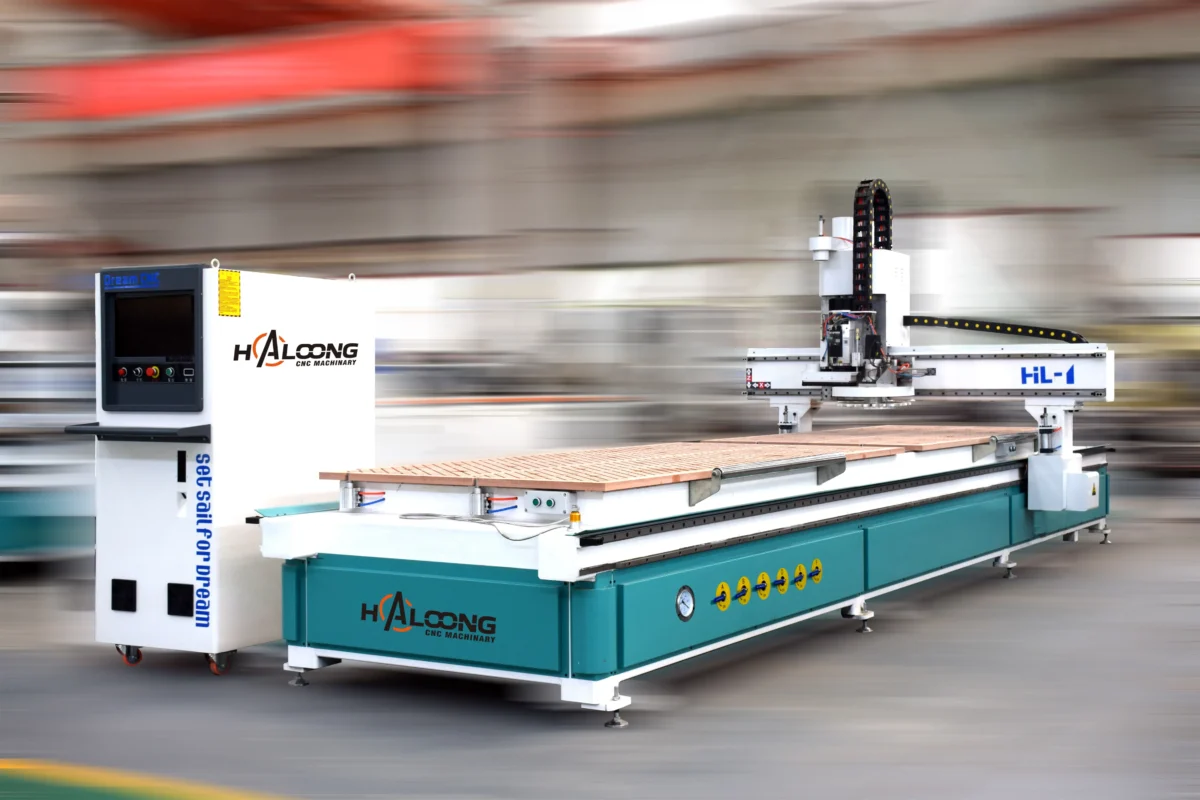

  • Technical Description: Our upgraded phenolic vacuum table offers exceptional material hold-down strength, ensuring stability and preventing movement during the machining process. Available in standard sizes like 4′ x 8′, with customizable options including 4′ x 9′ and 5′ x 10′. This machine can also be customized with a dual worktable configuration to further enhance productivity.
  • User Benefits: The strong vacuum hold-down guarantees accuracy, especially during intricate carving operations, resulting in cleaner cuts and superior finish quality. The availability of various table sizes provides the flexibility to handle projects of different scales, maximizing material utilization and reducing waste. The option for a dual worktable allows for continuous loading and unloading of materials on alternating tables, significantly increasing throughput and reducing downtime, especially for high-volume production environments.

• A Cleaner and Healthier Workspace: Integrated Engraving, Air Blowing, and Dust Collection

  • Technical Description: The innovative all-in-one design integrates engraving, an air blow system to clear chips, and an efficient dust collection system. The air blower helps to keep the cutting tool and material clear, while the dust collector effectively removes debris at the source.
  • User Benefits: Maintaining a cleaner workspace not only improves the quality of your work but also promotes a healthier environment for your employees by minimizing dust exposure. This integrated system saves space and simplifies setup.

• Built to Last and Perform: Heavy-Duty Construction and Precision Components

  • Technical Description: Engineered with a robust, heavy-duty square steel frame, high-precision gearbox, and a finely tuned servo system (with options for premium brands like Yaskawa or Leadshine), this machine is built for long-term reliability and consistent performance.
  • User Benefits: The durable construction ensures the machine can withstand the rigors of continuous, multi-shift operation, providing you with a dependable workhorse for years to come. The high-precision components guarantee exceptional cutting quality and engraving accuracy, leading to superior finished products.

• Maximize Throughput with Advanced CNC Technology: High-Speed and High-Power Performance

  • Technical Description: Leveraging state-of-the-art CNC technology, this machine delivers both high-speed and high-power performance. Pop-up locating pins enable quick and precise material positioning, significantly enhancing workflow efficiency and reducing setup times between jobs.
  • User Benefits: The combination of speed and power allows you to complete projects faster without compromising on quality. The precise material positioning ensures accuracy and repeatability, crucial for consistent results in batch production.

• User-Centric Design for Ease of Learning and Operation: Intuitive Display Interface

  • Technical Description: The user-friendly display interface is designed for intuitive navigation, allowing operators to quickly learn the machine’s functions and operate it with confidence.
  • User Benefits: The easy-to-understand interface minimizes the learning curve, reducing training time and allowing your team to become productive on the machine faster, ultimately boosting overall productivity.

• Ensure Accuracy and Reduce Errors: Automatic Tool Calibration

  • Technical Description: Equipped with an automatic tool setter, this feature automatically measures the tool.
  • User Benefits: This automated process significantly minimizes tool setup time, improves calibration accuracy, and reduces the potential for human error, ensuring flawless and precise operation from the start of every job.

Technical Specifications:

Applications:

This versatile CNC wood engraving machine excels in a wide range of industries and projects, making it an ideal solution for:

• Furniture Manufacturing:

  Creating high-quality cabinets, wardrobes, doors, and custom furniture pieces with intricate carvings and precise joinery.

• Cabinetry and Millwork:

  Producing detailed cabinet doors, intricate interior door designs, and decorative wall panels for residential and commercial spaces.

• Sign Making and Advertising:

  Fabricating dimensional signs, lettering, and display elements from various wood and acrylic materials.

• Decorative Arts and Crafts:

  Crafting intricate 3D carvings, personalized gifts, and artistic wooden creations.

• Material Processing:

  Efficiently processing solid wood, MDF, plywood, acrylic, PVC, and even soft metals like aluminum for diverse applications.

• Exhibition and Display:

  Manufacturing custom display stands, fixtures, and decorative elements for trade shows and retail environments.

Capable of continuous multi-shift operation, this machine empowers factories to complete high-volume orders swiftly while also providing the precision and speed required for intricate and creative engraving projects.

Benefits at a Glance:

• Maximize Efficiency:

  The rapid automatic tool changer and advanced CNC technology significantly minimize downtime, accelerating project completion and boosting overall productivity.

• Achieve Unmatched Precision:

  Servo-driven components and a robust machine frame ensure exceptional accuracy for detailed wood engraving, intricate cutting, and precise joinery.

• Enhance Versatility:

  Perform a wide range of operations, including cutting, carving, and drilling, all in one setup. Adapt seamlessly to diverse joinery techniques and a variety of materials.

• Experience Ease of Use:

  Simplified controls, an intuitive interface, and automation features make the machine accessible to operators of all experience levels, reducing training requirements.

• Ensure Long-Term Durability:

  The heavy-duty construction is engineered to withstand rigorous production demands, providing reliable performance and a strong return on investment.

• Maintain a Cleaner Workspace:

  The integrated dust collection system enhances safety, improves operator comfort, and contributes to a higher quality finish.

• Receive Comprehensive Support:

  Benefit from a 1-year limited warranty, lifetime free technical support, and convenient remote online assistance, ensuring peace of mind.

Why Choose This CNC Engraving Machine?

The High-Speed Automatic Tool Changer CNC Wood Engraving Machine is more than just a piece of equipment—it’s a strategic investment in the future of your woodworking business. Its servo-driven tool changer, expansive tool library, and robust design provide you with the power and flexibility to tackle everything from high-volume traditional furniture production to intricate custom carvings and modern joinery techniques. With customizable options and a strong focus on user-friendliness, this machine is specifically designed to meet the evolving needs of today’s dynamic woodworking industry. By choosing this CNC solution, you’re investing in efficiency, precision, and the ability to expand your creative and production capabilities.

Elevate Your Woodworking Capabilities Today!

For more detailed information, to discuss your specific requirements, or to request a personalized quote, please don’t hesitate to contact our expert team. Discover how the High-Speed Automatic Tool Changer CNC Wood Engraving Machine can transform your woodworking operations and help you achieve new levels of success.
